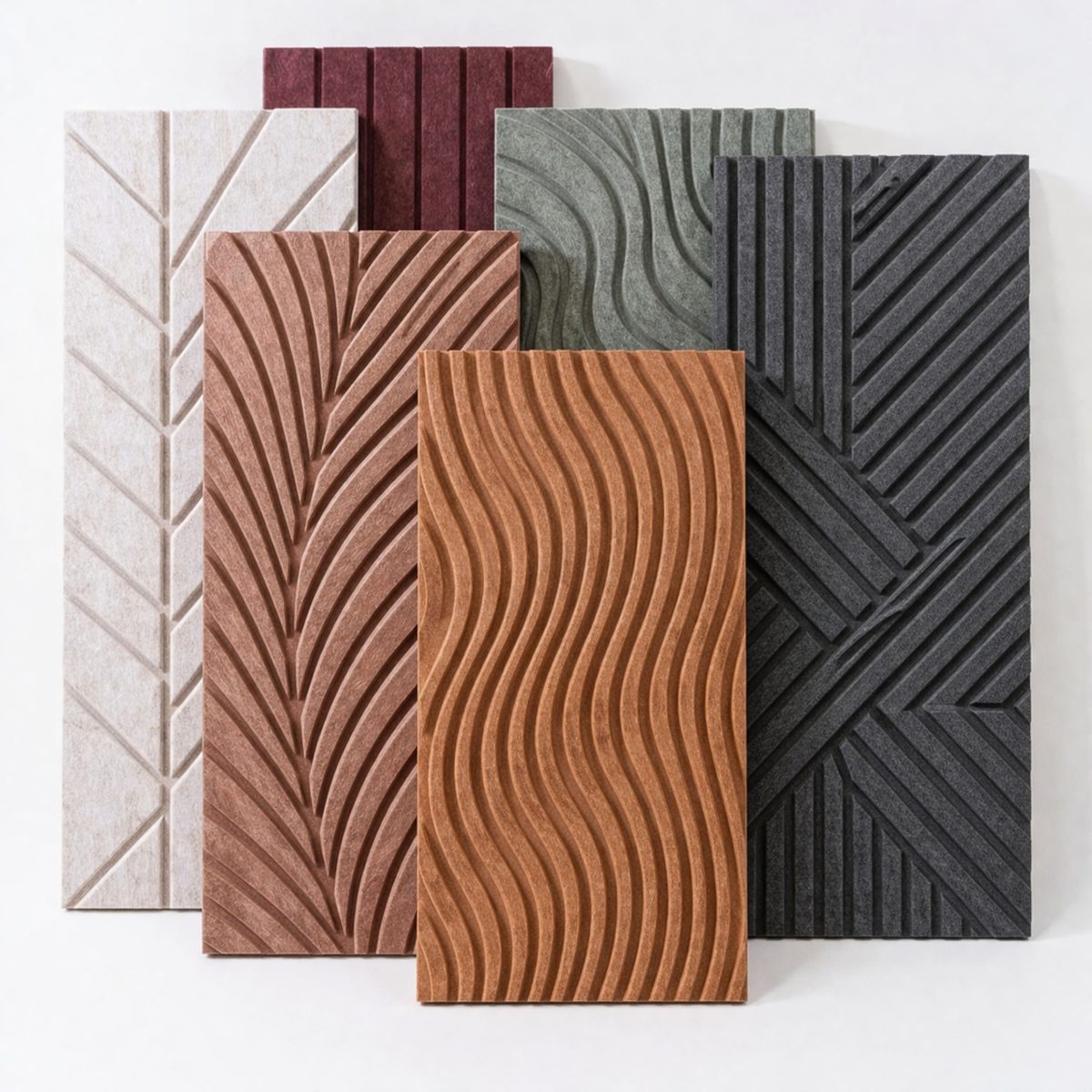

Echsorbix® Colour Mute Mirage
CNC Groove Acoustic Panels
CNC-cut PET acoustic panels with U-Groove and V-Groove patterns that add depth, texture and elegance to walls and ceilings while absorbing sound. Made by MMTPL at the Palwal plant, Haryana.
Send the photo to use here

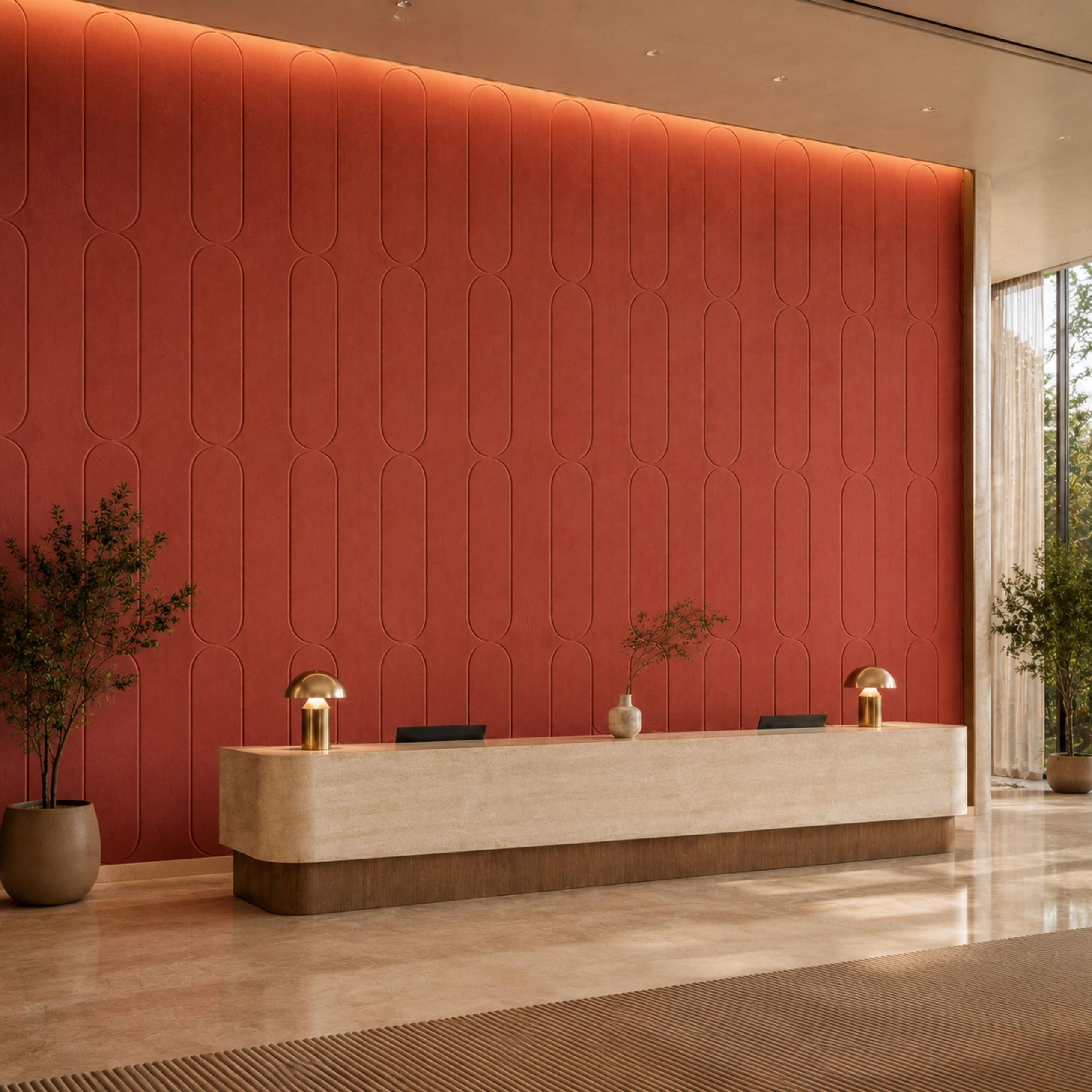

Wall before and after Echsorbix® Mirage
The problem it solves
What Echsorbix® Mirage fixes for you
Echo and reverberation
Grooved PET felt absorbs reflections and reduces echo effectively.
Flat walls in premium interiors
U-Groove and V-Groove patterns add depth and elegance while treating sound.
Unclear speech in auditoriums and conference rooms
Clearer voices and presentations.
Noisy hotels, restaurants and lounges
A calmer room with a design-led finish.
Home theatres and recording studios
Controls the reflections that colour the sound.
Applications
Where Echsorbix® Mirage goes

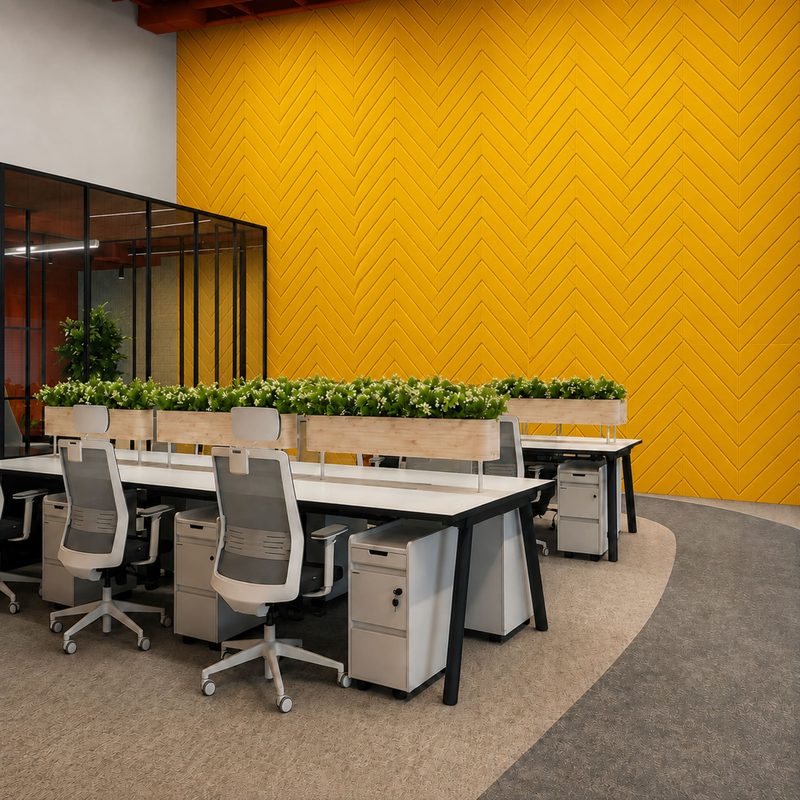

Luxury commercial interiors
Luxury commercial interiors

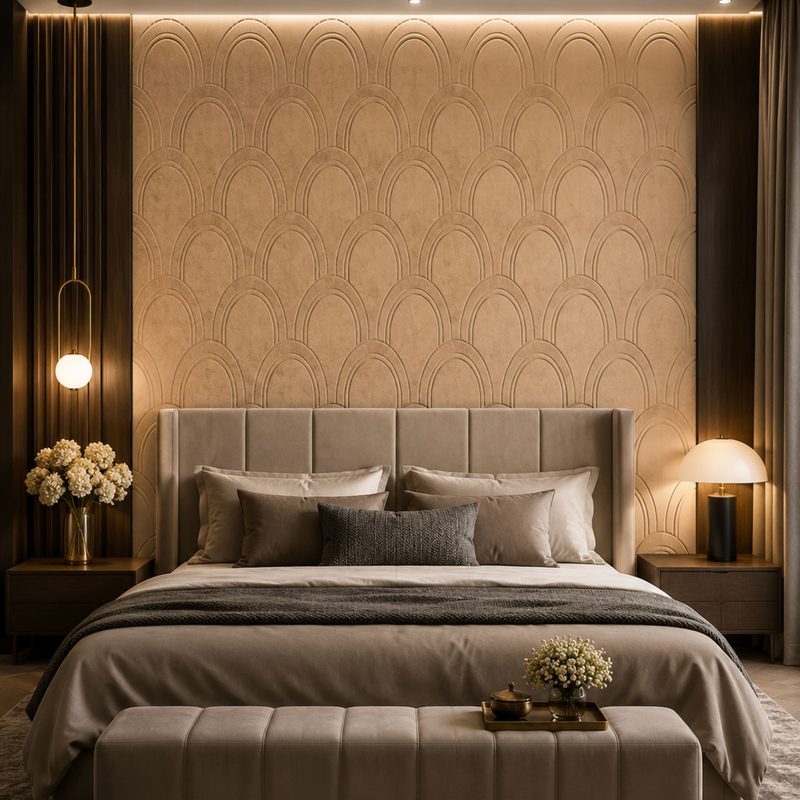

Modern residential spaces
Modern residential spaces

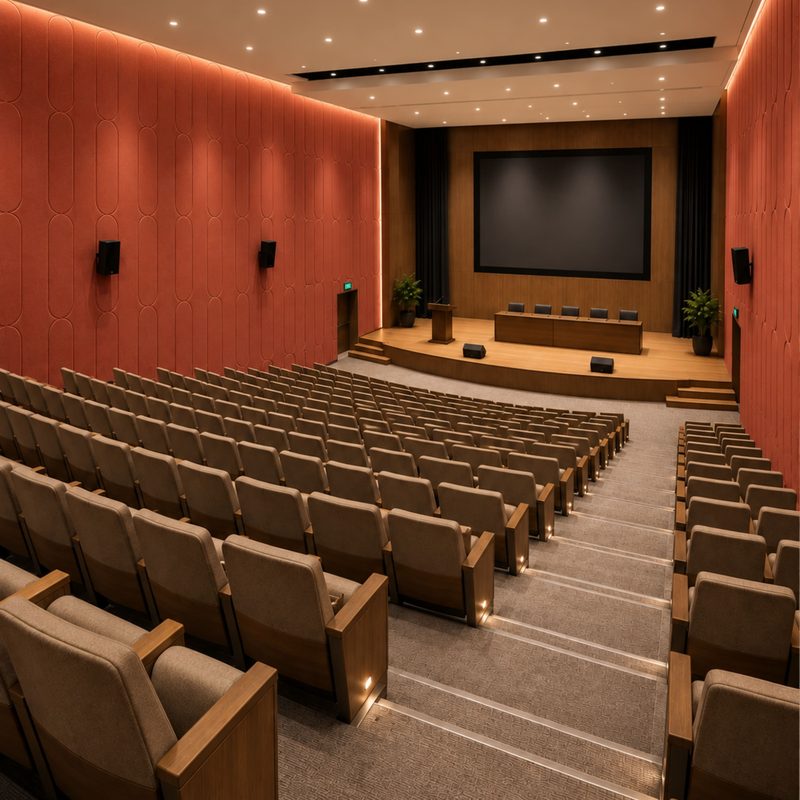

Auditoriums and conference rooms
Auditoriums and conference rooms
Also used in
- Hotels, restaurants and lounges
- Educational institutions
- Home theatres and recording studios
Why Mirage
Key features
Advanced acoustic performance
Reduces reverberation and echo effectively.
Premium aesthetic appeal
U-Groove and V-Groove patterns add depth and elegance.
Custom shape cuts
Tailored designs with precision CNC technology.
Eco-friendly
Made from recyclable PET polyester fibres.
Fire safety compliant
Certified with ASTM E84 fire rating.
Easy installation
Suitable for walls and ceilings.
Specifications
Technical data
| Material | 100% PET polyester fibre, non-woven |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Standard thickness | 9, 12, 18, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Standard panel size | 1220 x 2440 mm (4 x 8 ft, ±5%) |
| Maximum panel size | 3000 x 2000 mm |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15 (1500 GSM), EchoPro 18 (1800 GSM), EchoMax 22 (2200 GSM) |
| NRC | 0.30 (9 mm), 0.40 (12 mm), 0.50 (18 mm), 0.60 (24 mm), 0.90 (9 mm over 20 mm BassBloc®) |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recycled content | Minimum 60%, 100% recyclable |
| Colours | 40+ standard shades; custom development available |
| Surface finish | CNC cut grooves, custom patterns |
| Groove patterns | U-Groove, V-Groove, custom CNC cuts |
| Installation surface | Wall and ceiling |
| Lead time | 3 to 7 days |
| Warranty | 5 year colour fastness |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®This product
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and OEM
Grooves made to your drawing
Grooves are CNC cut, so pattern, spacing and depth are made to the project drawing. Panels up to 3000 x 2000 mm in 40+ colours. BOQ, specification and drawing support for project quantities.
